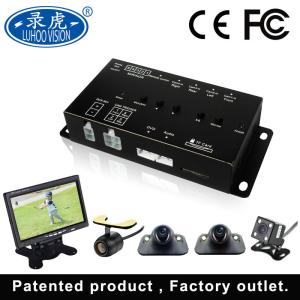

Panoramic Mobile 4 Channel Car DVR Recorder AV Video Format DC 12V/24V

Panoramic Mobile 4 Channel Car DVR Recorder AV Video Format DC 12V/24V

4 Channel Car DVR Recorder Safety Tips

1. This product is only driving assistance system, you concentrate on safe driving.

2. Before using this product, please read the detailed instructions.

3. car in the fast driving, the proposed closure of this product, concentrating observe road conditions.

4. Please consciously abide by traffic laws and regulations relevant to the country.

4 Channel Car DVR Recorder Description

• Power Led, electricity, light, when the system is in standby state, the power indicator lights flashing;

Status Led, electricity, light, when the system is recording, the power indicator lights flashing. This product

is the normal input voltage is 12V/24V.

(2) trigger line and manual keys can select the image in any way 4-way camera

(3)In Trigger state, hand the keys effectively. When you press the manual key "Quad" of orbutton,

the trigger is invalid, Undo "QUAD" trigger to be effective

(4) After triggering undo, image delay three seconds, and enters the standby state.

(5) the trigger condition, no priority, when the trigger line when more than two trigger, then the trigger line

corresponding channel full-screen image,only three seconds, and then jumps automatically split image screen.

(6) can connect up to four cameras, and automatically split video screen

4 Channel Car DVR Recorder Technical parameters

the screen mode

★Auto Mode introduces :( numbers represent the corresponding camera channel number, the channel number is not shown)

1. When connected to four cameras, camera work after the car starts, the screen automatically displays Quad mode, automatically shut down after a delay of 5 seconds.

1. When connected to three cameras, the camera work after the car starts, the screen automatically displays three Split mode, automatically shut down after a delay of 5 seconds.
2. When connected to two cameras, camera work after the car starts, the screen automatically displays Dual split mode, automatically shut down after a delay of 5 seconds.
3. Forward Looking trigger boot, depending on Full screen before the show, trigger an automatic shutdown of the exit delay 3 seconds.
4. After triggering a front or reverse power, turn left, turn left light trigger Full display screen for 3 seconds after the resumption of the automatic segmentation of video images.
5. After triggering a front or reverse power, turn right at lights, turn right trigger Full display screen for 3 seconds to return to automatic segmentation of video images.
6. Reverse trigger on, linked to reverse gear reversing Full screen display, shut down automatically after hanging reverse gear delayed for 3 seconds,

Four-core trigger line description

Four-wire:

Line 1 (Green) is a front view of the trigger line, you can access the Front

Office assist lamp or other neutral switch,When triggered,

the system boot, revoked, the system standby

Line 2 (white) left, as the trigger line, then turn left at light positive

(when the electric pen test twinkling).When the trigger,

automatic full screen display,

Line 3 (yellow) to reverse the trigger line, then reversing light positive,

When triggered, the system boot, when withdrawn,

system standby,

Line 4 (blue) to the right, as the trigger lines (sparking when electric

pen test) then turn right at lights positive,When triggered,

automatic full screen

Parking Monitor Description

Parking monitoring starting voltage must be greater than 12.5V (car batteries generally 13-14V), then the battery power, and a fifth DIP switch to dial up sign Parking REC
This product has a power loss protection, voltage less than 11.5V off automatically enter the sleep state, when the voltage is restored back to normal will automatically open parking video surveillance state.
