2 Split Vehicle Mobile DVR Driving Parking Monitoring Recording 1280*720

Name: 2 Split Vehicle Mobile DVR Driving Parking Monitoring Recording 1280720
Brand: OEM/LUHOO VISION
Price: 36 USD

Brand Name : OEM/LUHOO VISION

Model Number : ST302

Certification : CE FCC

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Unit/Units

Price : USD 36-45 / Units | 1 Unit/Units (Min. Order)

Payment Terms : T/T, Western Union

Supply Ability : 50000 pcs per month

Delivery Time : 5-8 working days.

Packaging Details : Well packed in professional paper box .

Product name : Vehicle Mobile DVR

Functions : Driving Parking Monitoring recording

Resolution : 1280*720

Video system : PAL/NTSC

Video Interface : 2 inputs (RCA connector), 1 outputs (RCA connector)

Storage : TF Card (less than 64G), the video format is AVI

Contact Now

2 Split Vehicle Mobile DVR Driving Parking Monitoring Recording 1280*720

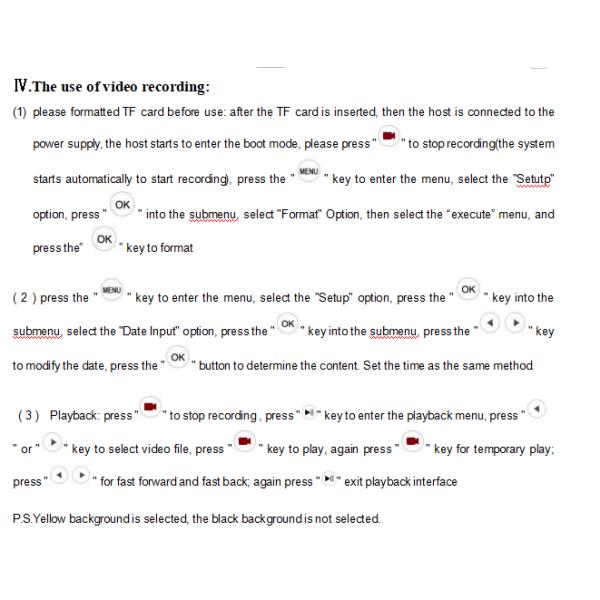

Vehicle Mobile DVR User's Manual
Ⅰ.Description

Power/ power Led, when the power is on, the power indicator light is always bright. When the system is recording, the power indicator lights flicker.
The normal input voltage of this product is 12V/24V.

(3)Short press (less than one second) manual button in turn to switch the camera's image; long press (more than one second) two split screen mode..
(4)Up to 2 cameras can be used to support AHD or TVI 720P signals .
Ⅱ.Button remote Features:

Ⅲ..Technical parameters

Name	2 split video mobile recorder
Video system	PAL/NTSC
Video parameters	Resolution 1280*720, refresh rate PAL:25 frame / second, NTSC:30 frame / second, peak value: 1Vp-p, impedance: 75 ohms.
Video Interface	2 inputs (RCA connector), 1 outputs (RCA connector)
Video Recording	TF Card (less than 64G), the video format is AVI
Audio Interface	Embedded mic
Operation mode	Remote controller / Wire control switch
Power Consumption	hosts running: 2W
Rated voltage	DC 12V/24V
Working temperature	0℃-+55℃
N.W.	150g
Size	915920mm (L * W * H)

Vehicle Mobile DVR parameters

product name	Starlight night vision HD camera
Chip	Original imported Sony UHD HD processing chip
Resolution	1024*720/1 million pixels
Product lens	Fisheye super wide-angle full-wave lens
Lens angle	Large wide angle 170 degree display
Color brightness	Automatic correction (for better results)
Video interface	RCA Lotus Plug
System	PAL system (NTSC optional)
Low illumination	0.1Lux (strong night vision effect / no fill light)
Tolerance temperature	- 50~80°C
Storage temperature	-40~105°C
Voltage	12V
Working current	120mA

2 Split Vehicle Mobile DVR Driving Parking Monitoring Recording 1280*720
