SD Card Auto DVR Camera System , Night Vision CCTV DVR Recorder

Product Categories
Shenzhen Sunta Technology Co., Limited
Contact Now

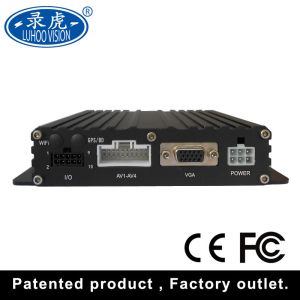

SD Card Auto DVR Camera System , Night Vision CCTV DVR Recorder

Brand Name : LUHOOVISION

Model Number : ST504AL

Certification : CE FCC

Place of Origin : Guangdong, China (Mainland)

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 5000 pcs per month

Delivery Time : 5-8 working days.

Packaging Details : Well packed in professional paper box .

Name : Auto DVR Camera System

Main processor : Hi3520DV300

Card : SD Card

Function : Night Vision

Recording quality : Class 1-6 optional

Password security : User password/Admin password

Video standard : PAL/NTSC

Video compression : H.264

Image resolution : 720P/960H/D1/CIF

Playback quality : 720P/960H/D1/CIF

Contact Now

SD Card Auto DVR Camera System , Night Vision CCTV DVR Recorder

Auto DVR Camera System FEATURES:

  1. High-quality real-time recording, 720P / CIF / HD1 / D1 optional, adjustable picture quality;
  2. Professional automotive power supply design, 8-36V wide voltage, providing reverse voltage / overload / short circuit protection for a variety of automotive applications;
  3. Support 12VDC / 2.5Amp output voltage, camera / screen and other power supplies;
  4. Support SD card recording (
  5. 128GB to protect the DVR from shock and dust damage;
  6. An exclusive file system protects data integrity and prevents SD card fragmentation;
  7. ACC delay is off, can be set for 24 hours;
  8. Automatic recording/manual recording/alarm recording and other working modes to meet different requirements;
  9. Display car status / board / driving route / low speed / speed information, easy to manage;
  10. Support image snapshots during alarms;
  11. Simple and intelligent GUI interface saves device setup time;
  12. The software can be upgraded via SD card.
  13. The aviation plug is stable, the connection is convenient, and the shockproof performance is high;

Auto DVR Camera System Technical parameter:

Item Device parameter Performance
System Main processor Hi3520DV300
Operating system Embedded Linux OS
Operating language Chinese/English
Operating interface GUI, support mouse
Password security User password/Admin password
Recording & Playback Recording mode Manual/Alarm
Video bit rate Full frame 4096Mbps,6 classes image quality optional
Audio bit rate 8KB/s
Storage media SD card
Video inquiry Inquiry by channel/Recording type
Local playback Playback by file
Firmware upgrading Upgrading mode Manual/Automatical/Remote/Emergency Recovery
Upgrading method USB disk/Wireless network/SD card
Interface AV input 4ch aviation interface
AV output 1ch VGA video output, 1ch aviation AV output
Alarm input 4 digital inputs (4 Positive/Negative trigger)
HDD/SSD 1 HDD/SSD (up to 2TB, support hot plug/unplug)
SD card 1 SDXC High speed card (up to 256GB)
USB interface 1 USB 2.0 (support U disk/mouse)
Ignition input 1 ACC signal
UART 1 LVTTL Level
LED Indication PWR/RUN
Disk lock 1
Debug port 1
Function extention GPS/BD Support detecting antenna Plug in/Unplug/Short circuit
3G/4G Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
WIFI 802.11b/g/n, 2.4GHz
Others Power input 8~32V DC
Power output 5V 300mA
Power consumption

Standby 3mA

Maximum consumption 30W @12V 2.5A @24V 1.25A
Working temperature -20 --- 70℃
Storage

720P 1G/h/channel

960H 750M/h/channel
Dimension 162mm*180mm*50.5mm

Packing and shipment

All of our goods will be wrapped into a Professional Color Box or Neutral Packaging, Do As you wish. we will wrap the well to make sure you would receive the perfect products.
1.EXPRESS: around 5-7 working days to arrive.
2.INTERNATIONAL AIR MAIL: around 2-4 weeks to arrive.

Our Services

Warranty:
All of our products have 15 months warranty of normal use. During this period, if the product has any quality problem ( not caused by humanbeing), we will repair it for free. Moreover, we offer a lifetime maintenance service .
Customize Service:
We have professional R&D team, if you have special requirements for the product, such as function, appearance etc. some professional requirements,pls feel free to contact us, we will offer you the most professional OEM&ODM service.
24/7 Online Service:
Any questions can contact us at any time,we will reply to you asap .
Fast Delivery Service:
Normally,we have the products in stock. Therefore,we can arrange delivery within 1 working day after receiving your payment. But for bulk order or some special festival, the shipment may takes a little longer.
